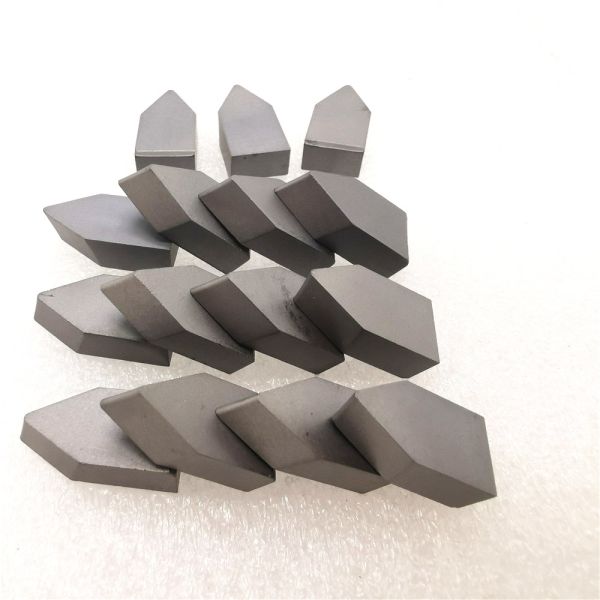

Customized Size Tungsten Carbide Brazed Tips with Hardness 93.0 HRA and TRS 2700 Mpa for Precise Cutting

Place of Origin : China

MOQ : 5

Price : $2-8

Material : Tungsten carbide and cobalt

Alloy Specification : YG6 YG6X YG8 YG9C YG11C YG13C

Surface : Glossy

Shape : plates

Color : black Alloy

Density : 14.90 g/cm³

Hardness : 93.0 HRA

TRS : 2700 Mpa

Porosity : A02/B00/C00

Grain size : 0.6-0.8 μm

WC Composition : 93.5%

Ni Composition : 6.0%

TaC Composition : 0.5%

Customizable Size : Yes

Minimum Order : 5 PIECES

Contact Now

Customized Size Tungsten Carbide Brazed Tips with Hardness 93.0 HRA and TRS 2700 Mpa for Precise Cutting

Products Description

Product Paramenters

Grade	Composition(% in weight)							Physical Properties						Grain size(μm)
	Composition(% in weight)									Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity
		WC	Ni	Ti	TaC				A/B/C	Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	13.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.6	3800	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	420092.8	2200	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.8	2200	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.1	2500	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.0	2000	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.1	2200	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample
